High Throughput Ethernet Switching Capacity ・28-port with 8 Ports Giga Combo and 16 Port 100M/1000M SFP, and 4-Port 1G/10G Base-R(SFP/SFP+) fiber ports. ・Powerful 800MHz MIPS-34Kc processor ・Energy-Efficient Ethernet for power saving ・Non-blocking switch fabric design ・8 flexible Class of Service(CoS) queues, 1K Multicast Groups for video applications ・16K MAC address table, 10KB Jumbo Frame |
Cyber Security ・MAC/IPv4/IPv6 Access Control List (ACL) ・DHCP Snooping, IP Source Guard, Dynamic ARP Inspection ・802.1Q VLAN, Port Security ・ Multi-Level user passwords ・ TACACS+, IEEE 802.1X, SNMPv3, HTTPS, and SSH to enhance network security ・ 802.1X MAB for non-802.1X compliant end devices ・ RADIUS/TACACS+ centralized password authentication |
|
Layer 2+ Switch and Router ・Layer 2+ IP Routing includes, Static Route and Dynamic Routing protocols, RIP, OSPF ,and VRRP •ITU-T G.8032 v1/v2 ERPS Standard Ring Redundancy protocol
•Less than 50ms recovery time, seamless restoration time
•Inter-Operability with 3rd party industrial switch and still remain fast recovery time
•Replace Ring + Chain + Dual Homing
|
Industrial Grade Management ・Various configuration paths, including WebGUI, CLI, SNMP and RMON ・ Command line interface (CLI) for quickly configuring major managed functions ・ SNMPv1/v2c/v3 for different levels of network management ・ RMON enables proactive monitoring, real-time insights, and efficiency. ・Surveillance VLAN simplify the deployment of network security monitoring systems by isolating monitoring traffic from data traffic, while improving security and improving network performance. ・ LLDP and LLDP-MED enhance device discovery, automate network configuration, improve interoperability, and support location-based services. |

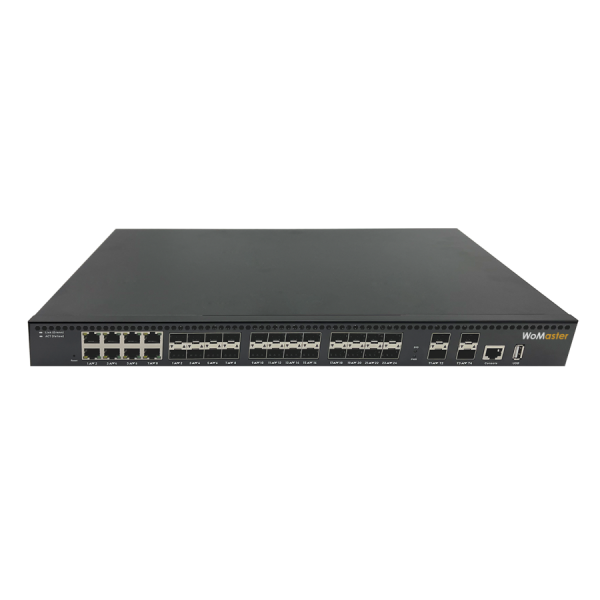

IRS628XG-8GC16GF4XGF
The IRS628XG-8GC16GF4XGF is a high-performance Layer 2+ managed Ethernet switch designed for large-scale, high-speed fiber networks. It features 8 Gigabit Ethernet combo ports, 16 Gigabit SFP optical slots, and 4 10GbE uplink SFP+ optical slots, all supporting wire-speed forwarding.
With advanced L2+ network management capabilities, it supports IPv4/IPv6 static and dynamic routing, robust security features, ACL/QoS policies, and enhanced VLAN functions for seamless network control and maintenance. Its built-in redundancy mechanisms, including ITU-T G.8032 Ethernet Ring Protection Switching (ERPS) (<20ms) and STP/RSTP/MSTP (<50ms), ensure high reliability and rapid recovery in the event of network failures.
Its full-fiber architecture and 10GbE uplinks make it an ideal solution for high-speed backbone networks in industries requiring stable and scalable connectivity.
| Technology | |
| Standard | IEEE 802.3 10Base-T Ethernet |
| IEEE 802.3u 100Base-TX Fast Ethernet | |
| IEEE802.3z 1000Base-X | |
| IEEE 802.3ab 1000Base-T Gigabit Ethernet Copper | |
| IEEE 802.3z Gigabit Ethernet Fiber | |
| IEEE 802.3x Flow Control and back-pressure | |
| IEEE 802.1AB Link Layer Discovery Protocol (LLDP) | |
| IEEE 802.1p Class of Service (CoS) | |
| IEEE 802.1Q VLAN | |
| IEEE 802.1D-2004 Rapid Spanning Tree Protocol (RSTP) | |
| IEEE 802.3ad Link Aggregation Control Protocol (LACP) | |
| IEEE 802.1X Port based Network Access Protocol | |
| Performance | |
| Switch Technology | Store and Forward Technology with Non-Blocking Switch Fabric |
| Number of MAC Address | 16K |
| Packet Forwarding Cache |
12Mbits |
| Transfer performance | Backplane Bandwidth: 128 Gbps (non-blocking), Packet forwarding rate @ 64byte: 95.23 Mbps |
| Jumbo Packet | 10KBytes |
| Interface | |
| Ethernet Port | 8 x Giga Combo ports 16 x 100/1000M SFP 4 x 1/10G SFP+ |
| System LED | 1 x Power,:Green ON(Power is on) 1 x SYS:Green Blinking (System is ready) |
| Ethernet Port LED | Link (Green On), 10/100M(Amber Off), 1000M(Amber On), Activity (Green Blinking) |
| SFP LED | Link (Green On), Activity (Green Blinking) |
| Reset | Default Settings Reset(over 7 Seconds) |
| Console | 1 x RS232 in RJ45 for System Configuration. Baud Rate: 115200.n.8.1 |
| Power Requirement | |
| Input Voltage | AC Input: AC 100~240VAC, 50/60Hz |
| Power Consumption | Standby power consumption: <22W; full load power consumption: <45W |
| Software | |
| IP Routing | L2+ network management functions. Support IPv4/IPv6 static/dynamic routing, Support IPv4/IPv6 dual-stack management Support RIPv1/v2, RIPng, OSPFv1/v2, OSPFv3 ARP protocol with a maximum of 1024 entries |
| VLAN | port-based VLANs (4K),IEEE802.1q VLANs, protocol-based VLANs Access, Trunk, and Hybrid port configurations. |
| Port Aggregation | static aggregation and dynamic aggregation (LACP) up to 8 aggregation groups, each aggregation group supports up to 8 ports |
| Redundancy | STP/RSTP/MSTP spanning tree protocols ITU-T G.8032 v1/v2 Ethernet Ring Protection Switching (ERPSv2) (single-ring, multi-ring, intersecting ring and tangent ring configurations), ring self-healing time less than 20ms Virtual Router Redundancy Protocol (VRRP) |
| IGMP, Mirroring | IGMP Snooping v1/v2/v3 and up to 1024 multicast groups. bi-directional traffic mirroring on basic ports |
| DHCP | DHCP Server, DHCP Client, DHCP Snooping v1/v2/v3 |
| QoS | port-based, 802.1P and DSCP/ToS prioritization, and supports 8 output queues per port. Four priority scheduling modes: Equ, SP, WRR, SP+WRR. Priority Mark/Remark, Flow-based rate limiting, packet filtering, redirection |
| ACL | L2 to L4 packet filtering function and provides ACLs defined based on source MAC address, destination MAC address, source IP address, destination IP address, IP protocol type, TCP/UDP port, TCP/UDP port range, VLAN, etc. Port-based and VLAN-based ACL issuance |
| Security | Hierarchical management and password protection, Port-based IEEE802.1X authentication AAA & RADIUS with TACACS+ authentication, MAC address learning number limit, MAC address blacklist, address binding, SSH 2.0 encrypted channel for user login, Port isolation, ARP message speed limit function, IP source address protection, ARP intrusion detection, Anti-DoS attacks, Port broadcast message suppression, Host data backup/restore mechanism, IP+MAC+VLAN+Port Quad Binding |
| Management | Web-based, CLI command line (Console, Telnet), SNMP (V1/V2c/V3), HTTP, TFTP file upload/download, RMON 1, 2, 3 and 9 groups, one key to restore factory settings NTP clock and local clock, local logs and system logs (SYSLOG), Ping detection, cable status checking, instant CPU utilization status, Link Layer Discovery Protocol LLDP, NMS (LLDP+SNMP) |
| Mechanical | |
| Installation | Rackmount |
| Enclosure Material | Steel Metal |
| Dimension(L*W*H) | 440*265*45mm |
| Ingress Protection | IP40 |
| Net/Gross Weight | 4.3kg / 4.8kg |
| Environmental | |
| Operating Temperature & Humidity | -10 to +50°C; 5% to 90% RH non-condensing |
| Storage Temperature | -10 to +50°C; 5% to 90% RH non-condensing |
| MTBF | 500,000 hours |
| Warranty | 1 year |
| Standard | |
| CE-EMC | EN 55032:2015/A11:2020/A1:2020, EN 55035:2017/A11:2020, EN IEC 61000-3-2:2019/A1:2021/A2:2024, EN 61000-3-3:2013/A1:2019/A2:2021, EN 61000-4-2:2009, EN IEC 61000-4-3:2020, EN 61000-4-4:2012, EN 61000-4-5:2014/A1:2017, EN IEC 61000-4-6:2023, EN 61000-4-8:2010, EN IEC 61000-4-11:2020 |
| CE-LVD | EN IEC 62368-1:2024+A11:2024 |
| RoHS | IEC 62321-5:2013& IEC 62321-4:2013+A1:2017& IEC 62321-7-2:2017& IEC 62321-6:2015& IEC 62321-8:2017 &IEC 62321-3-1:2013 & IEC 62321-7-1:2015 |
| Model Name | Description |
| IRS628XG-8GC16GF4XGF-E/U/UK | Rackmount L2+ Managed 10G Ethernet Switch, 8 Port Giga Combo + 16 Port Giga SFP + 4 Ports 1G/10G SFP+ slots, AC100~240V input |
| Package List | |
| 1 x Product Unit (Without SFP Transceiver) | |
| 1 x Power Cord EU or US or UK | |
| 1 x Quick Installation Guide |
Optional Accessory
| Item | ||||
| SFPGEM05DT | 1000M | 550M | Multi | SFP, 1000Mbps, LC, multi, DDM, 550M, -40~85°C |
| SFPGES10DT | 1000M | 10KM | Single | SFP, 1000Mbps, LC, single, DDM, 10KM, -40~85°C |
| SFPGES30DT | 1000M | 30KM | Single | SFP, 1000Mbps, LC, single, DDM, 30KM, -40~85°C |
| SFPXGM03D | 10G | 300M | Multi | SFP+, 10Gbps, LC, multi-mode, DDM, 300M, 0~70°C |
| SFPXGM03DT | 10G | 300M | Multi | SFP+, 10Gbps, LC, multi-mode, DDM, 300M, -40~85°C |
| SFPXGS10D | 10G | 10KM | Single | SFP+, 10Gbps, LC, single-mode, DDM, 10KM, 0~70°C |
| SFPXGS10DT | 10G | 10KM | Single | SFP+, 10Gbps, LC, single-mode, DDM, 10KM, -40~85°C |
